 About the GTS-1000:

If we had to use one word to describe our approach to design, we would choose the word innovative. Ever since we started producing motorcycles in the early 1950's we have always believed that the only way forward is to develop new ideas that will benefit Yamaha riders. Ideas like Autolube lubrication, Monocross suspension, 5-valve cylinder heads, Deltabox frames and our trend setting Genesis concept. All of them developed by Yamaha for the benefit of our customers all over the world. It is this total commitment to innovation that has enabled our engineers to create a revolutionary new machine that will undoubtedly change forever the way we all think about motorcycles.

This all-new machine represents a major leap forward in motorcycle design for many reasons. Our radical Omega chassis with its single-sided swinging arm front suspension achieves excellent high-speed stability, and with its inherent anti-dive properties offers remarkable all-round handling performance even when carrying a passenger and luggage.

As you would expect from a sport-tourer the GTS offers exceptionally high levels of rider and passenger comfort with its ergonomically designed seat/footrest/handlebar layout and full fairing with air management system. Designed to produce massive low to mid-range torque for quick and easy overtaking and effortless touring, the 1002cc 5-valve motor perfectly completes the Omega chassis to make the machine one of the most enjoyable and relaxing bikes to ride in its class. The GTS breaks new ground for Yamaha with its use of Electronic Fuel Injection (EFI) which ensures highly efficient combustion processes an instantaneous throttle response, while a 3-way catalytic converter reduces exhaust emissions for a cleaner environment. Available with ABS on the GTS1000A, the all-new Yamaha GTS1000 combines excellent roadholding and stability with high levels of rider comfort, and delivers massive torque exactly where a sport-tourer needs it most. Fitted with Electronic Fuel injection and catalytic converter as standard equipment, this environmentally responsible machine heralds beginning of an exciting new age for motorcycling.


When project '069' was launched our developments team’s aim was to produce a technologically superior sport-tourer that would offer high chassis and engine performance combined with excellent rider and passenger comfort. In short, our goal was to build the most sophisticated road-going Yamaha motorcycle ever produced. To achieve this our team set about designing the completely new Omega chassis with its single-sided swinging arm front suspension and hub link steering - a design offering previously unattainable levels of roadholding and high-speed stability. Powering the GTS is a specially modified version of our highly acclaimed FZR1000 motor. To achieve dramatically increased low to mid range torque our engineers have modified valve timing and lift, and for smooth, stepless power delivery the 1002cc 5-valve motor is fitted with Electronic Fuel Injection (EFI) as well as a 3-way catalytic converter to reduced emissions. Once we had created the new Omega chassis and high-torque motor our next task was to create the most comfortable seating position possible for both the rider and passenger. This has been achieved by developing a natural seat/footrest/handlebar layout combined with the use of an aerodynamically efficient fairing with air management. By using advanced chassis and engine technology combined with an ergonomically designed riding position and low drag fairing we have not only met, but exceeded our target for rider and passenger comfort. The result is a motorcycle that in every sense is ahead of its time!





    • Omega Chassis Concept ensures high rigidity and low center of gravity for excellent roadholding and stability.
    • Single-sided swinging arm front suspension gives excellent handling together with a high level of comfort – and with its inherent anti-dive properties delivers remarkable suspension performance.
    • Easily accessible, fully adjustable front shock absorber.
    • Excellent rider and passenger comfort.
    • Large diameter ventilated front disc with 6-pot caliper - the first time this design has been used on a production motorcycle.

    • Monocross rear suspension.


The Omega chassis represents a revolutionary new way of constructing motorcycles. Unlike anything previously manufactured by Yamaha, this design uses a single-sided swinging arm front suspension instead of conventional telescopic forks - and because this new system separates steering and suspension functions it has given our engineers greater freedom in setting chassis dimensions. Main frame beams are manufactured from multiple aluminum castings welded together, making for a very strong yet extremely light structure with a low center of gravity - while detachable, down-tubes run between the beam ends under the engine. Both the front and rear aluminum swinging arms are mounted directly to the main frame, while the front sub-frame supports the steering head, radiator and fairing and the rear sub-frame supports the seat, rear bodywork and electrical components. Front and rear shocks are also mounted directly onto the main frame, and die cast aluminum brackets bolted to the rear of the main structure support the passenger footrests and serve as mounting points for the rear sub-frame and muffler.

High levels of rigidity have been achieved by constructing the frame to be a very close fit around the motor, and for easy maintenance the right side of the frame can be unbolted. With no conventional steering head, fork tubes or triple clamps the omega chassis also allows greater freedom when mounting items such as the radiator, instruments and other front end components. And the name Omega? This was chosen because when viewed from the left side, the GTS1000's chassis resembles the Greek character Omega.


The GTS000's single-sided swinging arm front suspension consists of an aluminum swinging arm mounted to the main frame. A fully adjustable shock absorber is mounted between the swinging arm and frame. Arm steering inputs are transmitted from the handlebar crown through a steering box to a vertical cast aluminum spar (also called a knuckle arm) to the front wheel. This vertical spar is also supported by an upper arm mounted between the top of the spar and the main frame. Ball-joints located at the front of the swinging arm just above and below the axle and just below the steering box permit the front wheel and vertical spar assembly to turn left and right. This design offers the rider many benefits. Because the single shock is independent of the structure, which supports and steers the front wheel, its function is less influenced by the twisting and bending moments caused by braking and normal riding.

As a result this new front suspension system functions extremely well under a wide variety of road and load conditions to give excellent roadholding characteristics. Another advantage of this system is that it gave our engineers a large degree of freedom in establishing chassis dimensions. Depending on the location of the pivot points for the upper and lower arms, the length of the arms and the distance between the ball joints, the rate of change of rake and trail and other important factors could be changed to give the most appropriate dimensions. Another feature of this design is that the trail and wheelbase have very small rates of change during suspension action - the wheel moves in an almost vertical plane, thereby maintaining virtually constant steering characteristics regardless of suspension action. In addition, because there is almost no rearward movement of the wheel when the suspension is compressed our engineers have been free to locate the engine further forwards to achieve the desired front/rear weight balance. Finally, with its inherent anti-dive characteristics the GTS1000's front suspension eliminates the pitching motion experienced with conventional forks under braking to give a much smoother and more comfortable ride. Fully adjustable for spring preload, compression and rebound damping, the single front shock absorber offers 116 mm of wheel travel.


    • 1002cc liquid-cooled 5-valve slant block DOHC Genesis motor designed to produce massive low to mid-range torque.
    • Electronic Fuel injection (EFI) for excellent efficiency and reduced emissions.
    • Liquid-cooled oil cooler for extended motor life.
    • Curved radiator with large surface area for efficient cooling.
    • Chokeless operation due to EFI.
    • 3-way catalytic converter.

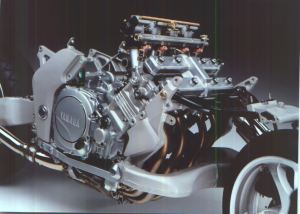

Developed from our proven and highly successful FZR1000 engine, the heavily modified GTS1000 engine has been specifically designed to produce significantly higher low to mid range torque with a smooth, stepless power delivery that is ideally suited to sport-tourer usage.

This has been achieved in a number of ways, and in particular by the use of Electronic Fuel Injection (EFI). Controlled by an Electronic Control Unit (ECU) the GTS1000's injection system delivers precisely the correct amount of fuel to each cylinder to suit the prevailing conditions. So whatever the altitude or ambient temperature, the engine 'jetting' is always right over a wide range of conditions - an especially important feature on a sport-tourer. In addition to these advantages, EFI also increases fuel efficiency and eliminates the need for a choke. Low to mid range. Performance has also been boosted by altering valve timing and lift, giving the GTS a strong spread of smooth pulling power. Together with the advanced suspension system, highly efficient fairing and ergonomically-designed riding position, this rider-friendly motor gives an incredibly smooth and relaxing ride.


The GTS1000's Electronic Fuel injection system consists of 4 injectors located in the machines inlet tracts, with each injector operated by an Electronic Control Unit (ECU). The ECU uses information gathered from sensors on and around the engine, including throttle sensor, intake air temperature sensor in the airbox, air intake pressure sensor in the inlet tract, an rpm sensor, water temperature sensor, cylinder identification sensor and oxygen feedback sensor. At low engine loads the precise quantity of fuel to be injected is determined by the amount of vacuum in the inlet tract, while at high loads it is determined by the amount of throttle opening. By independently monitoring each cylinder the exact amount of fuel is always injected which significantly improves throttle response and fuel efficiency over a wide range of operating conditions. So regardless of whether the GTS1000 is being ridden at sea level or high up in the mountains, in a very hot or very cold climate, the fuel mixture will always be accurate. And because Electronic Fuel Injection eliminates the need for a choke, the GTS is quick and easy to start whether the engine is hot or cold. Fitted with a self-diagnosis function, any potential problem on the new Electronic Fuel Injection system is easy to identify and put right.


As well as being remarkably smooth, the new GTS1000 powerplant is also cleaner than a conventional engine because it is filled with a 3-way catalytic converter. Used in conjunction with Electronic Fuel Injection this stainless steel honeycomb design catalyzer offers low flow resistance and reduces HC by approximately 60%, CO by approximately 70% and NOx by approximately 60%.


The GTS1000 represents many firsts for Yamaha, and with its 6-pot opposed piston caliper front brake it is the first production motorcycle fitted with this system. Operating a large, centrally-mounted 330 mm ventilated disc, this new caliper design ensures dependable braking, and is backed up by a 282 mm ventilated rear disc with twin pot caliper. New design 17 inch cast alloy wheels are fitted with a 130/60/17 front tire and 170/60/17 rear tire for excellent traction, and to accommodate the new single-sided swinging arm front suspension the front wheel axle is considerably offset.


The ABS system used on the GTS1000A is very similar to that used on the FJ1200A, and its advanced design incorporates an Electronic Control Unit (ECU) using dual microcomputers with a self-diagnosis function. A Hydraulic Unit (HU) controls the flow of brake fluid by means of a flow control valve, pressure control solenoid valve, buffer chamber, hydraulic pump and electric motor. The HU is controlled by the ECU which receives signals at 8 millisecond intervals from sensors at the front and rear wheels which it analyses using dual microcomputers. If the ECU senses imminent wheel lock-up it will signal the HU to increase and decrease brake fluid pressure at up to 10 times per second to prevent lock up at the relevant wheel The rider becomes aware of the ABS operation by feeling the pulsating brake fluid pressure at the front brake and rear brake levers. If the ABS system ever malfunctions a warning light is displayed on the instrument panel and the machine reverts to normal non-ABS assisted braking, Weighing only 2.8 kg, the HU for the GTS1000's ABS is located centrally in the chassis to maintain the low center of gravity achieved by this new machine.


    • Full fairing for efficient air management and excellent wind protection.
    • Natural riding position gives high levels of rider and passenger comfort and reduces fatigue on long rides.
    • Anti-dive front suspension eliminates pitching under braking.
    • Proven Monocross rear suspension for stability and comfort.
    • Omega chassis ensures high-speed stability.
    • Large, comfortable seat.
    • Storage spaces in tank and under the seat for personal items.
    • Car-style instrument panel for comprehensive information.


As described in the introduction, one of our main aims when developing this revolutionary new sport-tourer was to offer the highest possible levels of rider and passenger comfort.

This has been achieved by the use of an aerodynamically efficient fairing, natural riding position and a luxurious seat, together with the GTS1000's excellent new front suspension system and our proven Monocross rear end.

We've also provided useful storage compartments for personal belongings, and fitted the machine with our most comprehensive instrument panel ever.


As every rider who has ridden at high speeds knows, comfort on a motorcycle is dramatically influenced by air velocity. The fairing and bodywork on the GTS1000 have been designed to manage the airflow in such a way as to minimize turbulence and maximize wind protection. Available as standard with a choice of sport or touring screens, the GTS fairing deflects turbulence and creates a relatively stable pocket of air around the rider and passenger. This extremely efficient design achieves a remarkably low coefficient of drag and also reduces wind and air noise induced fatigue. Built-in mirrors give extra weather protection for the rider's hands, and the tire-hugging rear fender keeps dirt and water in its place.


One of the most critical features for any long distance machine is the riding position. In Keeping wills our aim of producing an advanced sport-tourer we paid close attention to creating a seat/footrest/handlebar relations for the rider and a seat/footrest/rider relationship for the passenger that would ensure a natural riding position. Neither too far forward nor too upright, the GTS1000's riding position ensures high levels of comfort.


Long, roomy, deeply padded and comfortable, the dual seat allows the rider and passenger to shift their weight around and find the most comfortable position.


One of the benefits of the Omega chassis design is that it frees up a great deal of space that would otherwise be occupied on a conventional machine. For example, the fuel tank features a built-in storage compartment ideal for storing gloves, maps or other small items, and further storage space is available in the tail and under the seat.


The GTS instrument panel is both elegant and functional, and includes a speedometer with twin trip meters, tachometer, clock, fuel gauge and a full range of indicator lights including one for water temperature. With its automotive style layout, the instruments are easy to read, and for high reliability and convenience both the speedometer and tachometer are electronically operated cable-free designs. Headlights throw a broad beam to give excellent forward and peripheral illumination, and for improved aerodynamics and enhanced looks both the front and rear turning signals are built in to the fairing and rear light cluster respectively. To deter thieves the GTS is equipped with a specially hardened 7-leaf tumbler ignition switch which resists attempts to penetrate it with drills and screwdrivers and should any attempt be made to by-pass the switch a sensor commands an automatic cut-out to immobilize the EFI.


Our proven Monocross suspension system is used at the back end for smooth, accurate operation. Created by a lightweight Deltabox swinging arm, the preload, compression and rebound adjustable shock gives a full 130 mm rear wheel travel for a comfortable ride even when fully loaded.


Another first on the GTS is our use of a new painting process developed by Yamaha. Called Melange, this patent-pending technique achieves an outstanding finish with amazing depth and clarity, and with its semi-metallic finish this new system emphasizes the high quality image of the new GTS1000.



The GTS1000 has been designed as an advanced sport-tourer and in line with this concept Yamaha has developed pannier boxes as optional accessory items. These panniers feature an all-new mounting system and have been developed in close co-operation with Krauser. They will be available exclusively as Genuine Yamaha Accessories through the Yamaha dealer network. The panniers will be available in two sizes with the larger version capable of storing an integral helmet.








Liquid-cooled, 4-stroke, DOHC

Overall length

2170 mm

Cylinder arrangement

Forward inclined Parallel

Overall width

700 mm


Overall height

1320 mm

Displacement 1002 cc


1495 mm

Bore and stroke

75.5 x 56.0 mm

Min. ground clearance

135 mm

Compression ratio

10.8 :1

Dry weight

246/251 kg

Max. power (DIN)

100.6 Ps (74 kW)

Frame type

Double Cradle

@ 9000 rpm

Caster angle

24 degrees


96.6 PS (71 kW)000000/FONT>


100 mm

@ 9000 rpm

Fuel tank capacity

20 Liter

Max. torque

10. 8 kg.m (1 05.8 Nm)

Front suspension

Swing Axle

@ 6500 rpm

Front shock absorber

Coil Spring/Oil Damper

Starting system


Rear suspension

Swing arm (Link Suspension)


Wet sump

Rear shock absorber

Coil Spring/Oil damper

Primary reduction ratio

68/41 (1.659)

Pivot shaft bearing-type

Needle Bearing

Secondary reduction ratio

47/17 (2.765)

Front wheel

MT3.50 x 17, Aluminum

Clutch type

Wet Multiple-disc

Wheel travel

116 mm



Rear wheel

MT5.50 x 17,Aluminum

Gear ratio 1st

36/14 (2.571)

wheel travel

130 mm

Gear ratio 2nd

32/1 8 (1.778)

Front tire size

130/60 ZR1 7

Gear ratio 3rd

29/21 (1.381)

Rear tire size

170/60 ZR1 7

Gear ratio 4th

27/23 (1.174)

Front brake

Single Disc, 330 mm diam.

Gear ratio 5th

28/27 (1.037)

Rear brake

Single Disc, 282 mm diam.

Ignition system

T.C.I. (digital)

Final transmission

Chain drive

Always wear a helmet, eye protection and protective clothing. Yamaha encourage you to ride safely and respect fellow riders and the environment. Specifications are subject to revision and change without notice, and may vary slightly from country to country.
